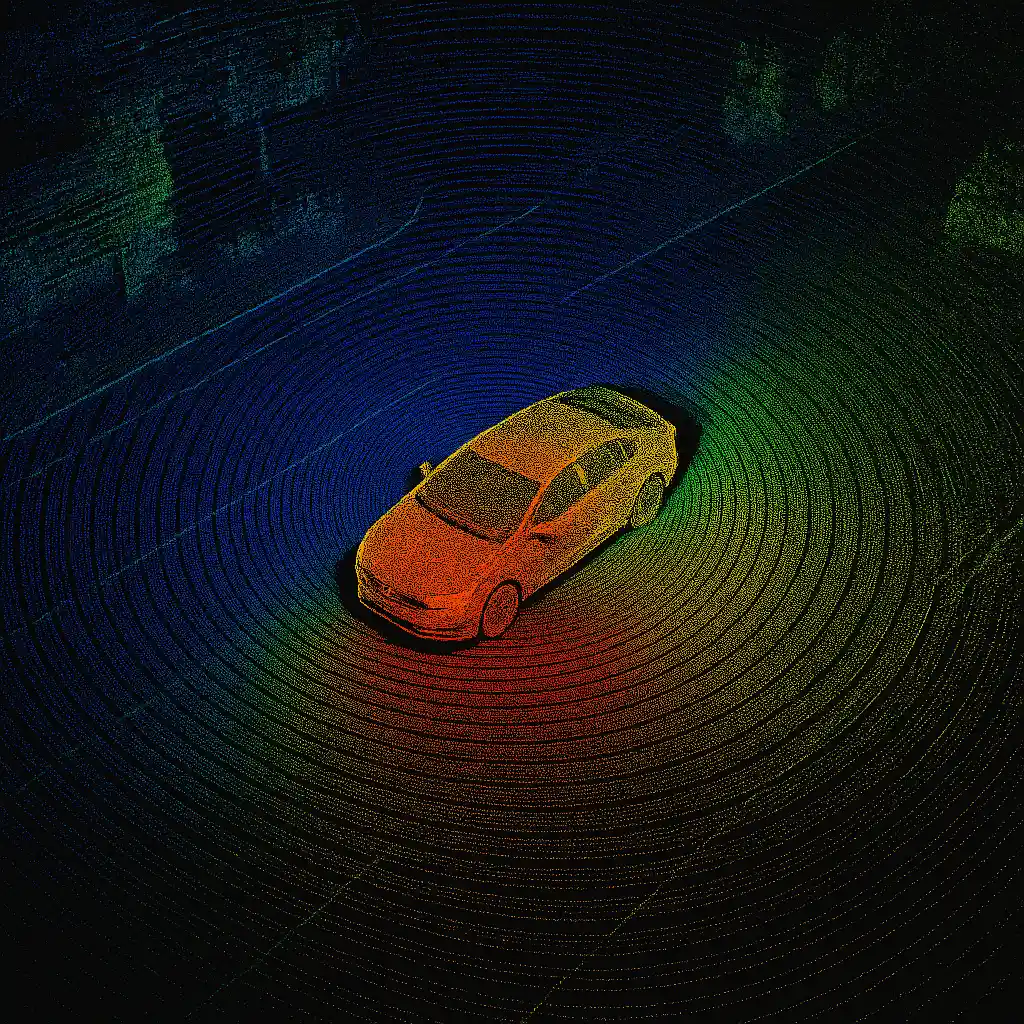

3D Point Cloud Annotation Services for Autonomous Driving, Robotics, and Mapping

3D annotation adds spatial labels to three-dimensional data, typically LiDAR point clouds, multi-camera setups producing depth information, or 3D mesh representations. It includes 3D bounding boxes (cuboids defined by position, dimensions, and orientation in 3D space), point cloud segmentation (assigning class labels to individual points), and 3D polylines or planes for road markings and surfaces. 3D annotation is essential for autonomous driving, robotics, and any application where a system must understand the physical geometry of its environment rather than just its 2D appearance.

3D cuboid annotation places a precisely oriented rectangular cuboid around each object in a 3D point cloud, capturing the object's center position, dimensions (length, width, height), and yaw angle. Unlike 2D bounding boxes, 3D cuboids describe objects in physical space with real-world dimensions, allowing downstream systems to calculate exact distances, sizes, and trajectories. This is essential for autonomous vehicles (knowing a pedestrian is 1.2 meters wide at 15 meters distance) and robotics (knowing a box is 30cm tall to plan a grasp). The annotation challenge is that objects in point clouds are sparse, occluded, and must be labeled from bird's-eye, front, and side views simultaneously.

3D annotation is significantly more complex than 2D image annotation. Annotators must work in three simultaneous views (bird's eye, front, side), place cuboids with precise position and orientation, handle occlusions where objects are only partially represented by points, and maintain consistent object tracking across frames in sequential data. Annotation speed is typically 10 to 30 cuboids per hour for LiDAR data, compared to hundreds of bounding boxes per hour for 2D images. Annotation tools matter significantly: 3D annotation platforms with auto-fitting, ground plane detection, and copy-propagation across frames substantially reduce annotation time.

Common 3D annotation formats include KITTI (popular in autonomous driving research, stores cuboids as text files with type, dimensions, and location), nuScenes JSON (for multi-sensor autonomous driving datasets), PCD with custom label files (for point cloud segmentation), and custom JSON or binary formats for proprietary training pipelines. For fusion applications combining LiDAR with cameras, annotations must include calibration data so that 3D labels can be projected onto 2D images and vice versa. DataVLab delivers 3D annotation datasets in your required format with validated coordinate systems and sensor calibration compatibility.

3D annotation is primarily used in autonomous driving (vehicles, pedestrians, cyclists, road furniture in LiDAR point clouds), mobile robotics and warehouse automation (object detection and mapping for navigation and manipulation), construction site monitoring (tracking equipment and personnel in 3D space), precision agriculture (plant and crop structure analysis from drone LiDAR), and industrial inspection (3D measurement and defect detection from structured light or photogrammetry). Any application requiring spatial understanding beyond what 2D cameras can provide is a candidate for 3D annotation.

3D annotation quality depends on cuboid fit accuracy (the cuboid should tightly enclose all points belonging to the object), orientation accuracy (the yaw angle must match the object's actual heading direction), class accuracy (correct class assignment including distinguishing similar object types like truck vs. van), and completeness (all instances must be labeled even when point density is low). For sequential LiDAR data, tracking consistency is an additional quality dimension: each object must maintain a consistent ID across frames and the same physical object must not be labeled as multiple different tracks. DataVLab implements automated checks for empty cuboids, overlapping cuboids, and tracking ID consistency alongside human quality review.
