Overview of Medical Image Annotation for AI: Modalities, Tools, and Use Cases

Explore how medical image annotation powers cutting-edge healthcare AI. This in-depth guide covers key imaging modalities (MRI, CT, X-ray), annotation types (bounding boxes, segmentation, keypoints), specialized tools, regulatory challenges, and real-world use cases across radiology, pathology, and diagnostics.

Introduction: Why Medical Image Annotation Matters in the AI Age

The intersection of artificial intelligence and healthcare is transforming modern medicine. From early cancer detection to robotic surgery assistance, AI’s potential is immense—but it all starts with data. Specifically, annotated medical images.

Medical image annotation is the backbone of supervised learning in healthcare AI. It enables models to “see” what experts see—tumors, fractures, lesions, anomalies—and learn to recognize patterns across vast amounts of clinical data. But unlike natural images, annotating medical scans presents high stakes, unique challenges, and a need for deep domain expertise. According to the National Institutes of Health, access to large, annotated datasets is critical for developing AI tools in healthcare.

This comprehensive guide explores the modalities, tools, and real-world use cases that define medical image annotation today. Whether you're building a deep learning model for radiology or managing a hospital AI project, this article equips you with the insight needed to make informed, strategic decisions.

1. Understanding Medical Image Annotation

What Is Medical Image Annotation?

Medical image annotation is the process of labeling visual data from diagnostic imaging (like X-rays or MRIs) to make it understandable to machine learning algorithms. This involves marking structures, regions of interest (ROIs), pathologies, or abnormalities using various techniques—bounding boxes, contours, segmentation masks, and more.

Why It’s Crucial for AI Models

Supervised learning needs ground truth to learn from.
Helps AI systems detect, classify, and even predict health conditions.
Reduces diagnostic time and variability between physicians.
Improves model accuracy, sensitivity, and generalizability.

Who Performs Medical Annotations?

Radiologists & Pathologists: For high-complexity images and clinical validation.
Specialized annotators: Trained medical professionals or biologists.
Annotation vendors: Companies offering managed services with QA pipelines.

2. Key Modalities in Medical Image Annotation

Medical imaging spans a diverse set of modalities, each with unique properties and annotation challenges.

🩻 2.1. X-rays

Use Case: Chest X-rays for pneumonia, fractures, TB, or COVID-19 detection.
Annotation Types: Bounding boxes around lesions or opacity; segmentation of organs (lungs, heart).
Challenges: Low contrast, overlapping structures, variability in projection.

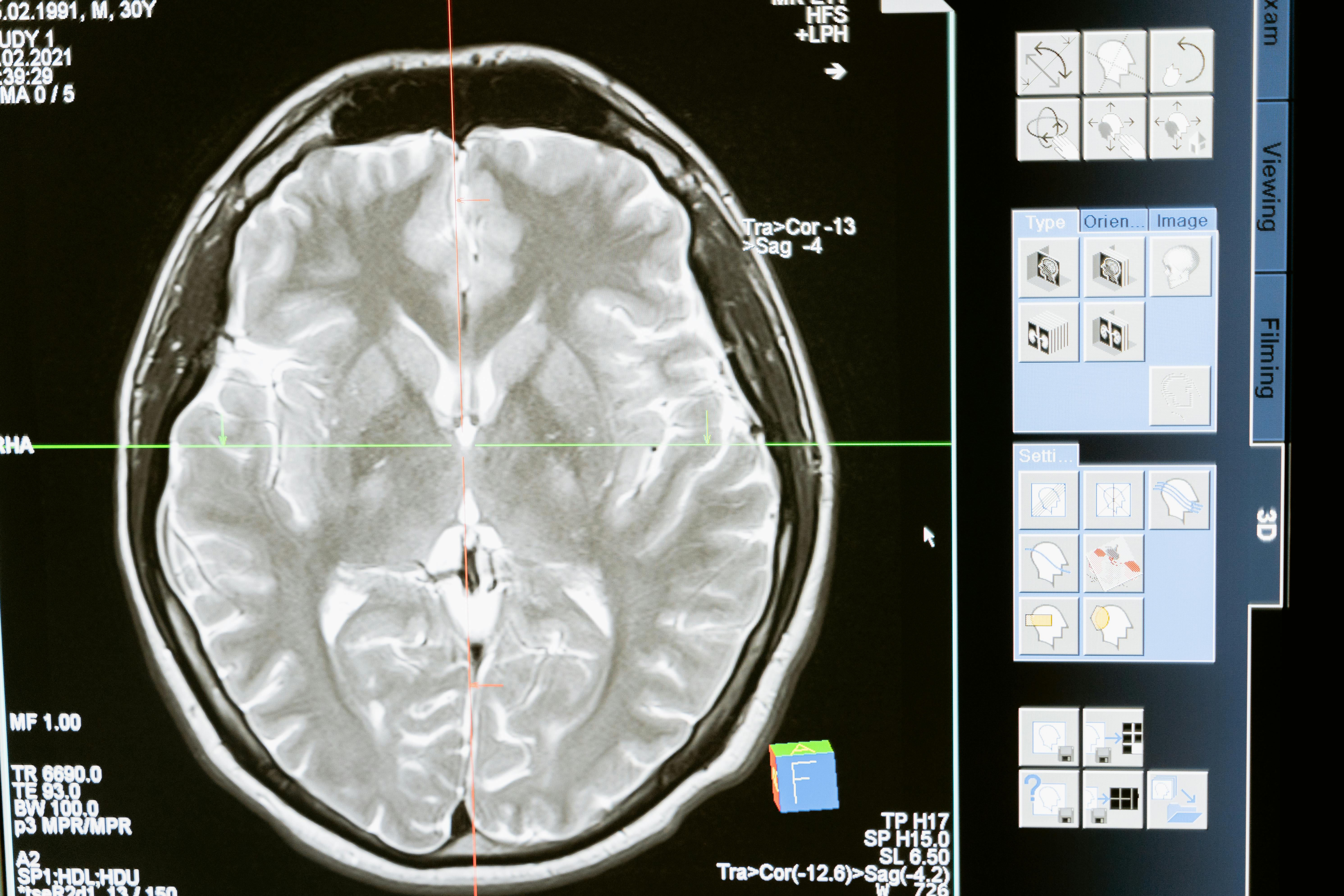

🧲 2.2. MRI (Magnetic Resonance Imaging)

Use Case: Brain tumors, spinal cord analysis, knee cartilage tracking.
Annotation Types: Multi-slice segmentation, 3D reconstruction.
Challenges: Large file sizes, non-standard orientations, DICOM complexities.

⚛️ 2.3. CT Scans (Computed Tomography)

Use Case: Lung nodule detection, liver segmentation, trauma triage.
Annotation Types: Volumetric annotations, 3D bounding boxes, masks.
Challenges: High dimensionality, contrast variations, radiation artifacts.

🧪 2.4. Pathology Slides (WSI)

Use Case: Cancer grading, cell counting, nucleus segmentation.
Annotation Types: Polygonal outlines, pixel-level masks, heatmaps.
Challenges: Gigapixel resolution, need for precision at cellular scale.

🧠 2.5. Ultrasound

Use Case: Fetal measurements, cardiac echo, thyroid nodule classification.
Annotation Types: Line measurements, ROI masks, anatomical labeling.
Challenges: Operator dependence, image noise, variable angles.

👁️ 2.6. Ophthalmology (Fundus, OCT)

Use Case: Diabetic retinopathy, glaucoma, macular degeneration.
Annotation Types: Layer segmentation, lesion labeling.
Challenges: Subtle contrast differences, layer overlaps.

🧬 2.7. Nuclear Medicine (PET, SPECT)

Use Case: Functional imaging for cancer staging, Alzheimer’s detection.
Annotation Types: Activity thresholding, fused image labeling (PET/CT).
Challenges: Multimodal registration, functional vs. structural fusion.

3. Common Annotation Techniques for Medical Imaging

Medical imaging requires annotation techniques that are both clinically accurate and computationally efficient. The right technique depends on the task—be it detecting an organ, segmenting a tumor, or classifying an entire scan. Below are the most widely used annotation methods in healthcare AI workflows.

🟩 3.1. Semantic Segmentation

What it is:
Semantic segmentation involves labeling every pixel in an image based on its class (e.g., tumor, healthy tissue, bone). All pixels belonging to the same category receive the same label.

Where it's used:

Tumor segmentation in MRI or CT scans
Organ delineation in radiotherapy planning
Tissue classification in histopathology slides

Why it matters:
This technique provides the highest level of detail, making it essential for tasks where boundaries matter, such as differentiating between healthy and diseased tissue.

Best practices:

Use multi-rater validation to account for medical ambiguity
Apply class balancing techniques to avoid undertraining rare structures
Consider active learning loops for continuous improvement

🟨 3.2. Bounding Boxes

What it is:
Rectangular boxes drawn around an object of interest, indicating its approximate location.

Where it's used:

Lung nodule detection on chest X-rays
Bone fracture identification in orthopedic scans
Polyp detection in colonoscopy videos

Why it matters:
Bounding boxes are quick to annotate and ideal for early-stage model training or triage systems where precise contours are less critical.

Best practices:

Ensure the box tightly encloses the object, avoiding excess background
Use class labels for each box to distinguish between object types
Combine with classification for improved diagnostic workflows

🔺 3.3. Polygon Annotation

What it is:
Flexible outlines drawn point-by-point around irregularly shaped structures, allowing more detailed boundary definitions than boxes.

Where it's used:

Lesion annotation in dermatology or radiology
Tumor borders in pathology or brain imaging
Retinal vessels or hemorrhages in ophthalmology

Why it matters:
Polygons allow for precise modeling of object contours, which is crucial in medical contexts where even small misalignments can alter diagnoses or treatment plans.

Best practices:

Annotate using a high-resolution interface to prevent oversimplified shapes
Cross-check with segmentation masks when available
Use zoom and pan tools for detailed tracing in large images (e.g., WSI)

🟦 3.4. Keypoint Annotation

What it is:
Keypoints are individual markers placed on specific anatomical landmarks or areas of interest.

Where it's used:

Skeletal landmarks in orthopedics for posture or injury analysis
Fetal biometry in ultrasound (crown-rump length, femur length)
Facial features in cleft palate or surgical planning

Why it matters:
Keypoint annotation enables spatial and geometric analysis of body structures, useful for measuring growth, movement, or deformation.

Best practices:

Maintain consistent labeling conventions across images and annotators
Consider inter-rater variability for anatomical points with low visibility
Use motion tracking if annotating keypoints in video sequences (e.g., cardiac echo)

🟥 3.5. Instance Segmentation

What it is:
Similar to semantic segmentation, but each object is labeled individually, even if they share the same class (e.g., labeling each cell in a cluster).

Where it's used:

Nuclei detection in pathology slides
Lung nodules or lesions in CT
Detection of overlapping structures in ultrasound or mammograms

Why it matters:
Instance segmentation provides a granular level of detail, making it possible to count, measure, and analyze individual instances in a crowded field.

Best practices:

Apply post-processing to separate touching instances
Ensure annotations are validated with cell-level accuracy
Ideal for use cases involving object density metrics (e.g., cell count, tumor multiplicity)

🧩 3.6. 3D Annotation

What it is:
Annotation performed across a volume of slices, such as in CT or MRI, creating a 3D representation of the target region.

Where it's used:

Brain tumor segmentation across axial, coronal, sagittal planes
Organ reconstruction (liver, lungs, kidneys)
Orthopedic planning using 3D bone structures

Why it matters:
Most modern radiological workflows involve 3D data. Accurate 3D annotation allows for volumetric analysis, which is crucial for surgical planning, dose calculation, or monitoring disease progression.

Best practices:

Use annotation tools with multi-planar reformatting (MPR)
Align annotations across slices to ensure smooth 3D continuity
Validate with volumetric accuracy metrics (e.g., Dice coefficient, IoU)

🧪 3.7. Classification Tags

What it is:
Assigning metadata or categorical labels to an entire image or series—without drawing shapes.

Where it's used:

COVID-19 diagnosis from chest X-rays
Cancer staging based on pathology reports
Presence of comorbidities inferred from imaging patterns

Why it matters:
While less granular, classification tags are extremely useful for training image-level classifiers, managing datasets, and automating high-level triage decisions.

Best practices:

Define clear and consistent class definitions (e.g., “mild”, “moderate”, “severe”)
Combine with structured metadata (e.g., patient age, modality)
Use for building weakly supervised learning pipelines when granular annotation is unavailable

4. Annotation Tools for Medical AI

Choosing the right annotation tool can dramatically affect speed, accuracy, and compliance.

🛠️ Key Features to Look For

DICOM Support: For radiology and multi-slice data.
Multiplanar Viewing: Annotate in axial, sagittal, coronal views.
3D Volume Rendering: Crucial for CT and MRI.
HIPAA/GDPR Compliance: Especially when dealing with PHI.
Built-in QA Workflows: Reviewer roles, inter-annotator agreement tracking.
Pathology-Specific Features: Zooming, cell-level tagging, WSI handling.

🧰 Popular Annotation Platforms: Encord, Labelbox, CVAT+OHIF, MD.AI, etc.

5. Use Cases Across Healthcare Specialties

🧠 5.1. Radiology

AI models trained on annotated X-rays, CTs, and MRIs are now used for:

Chest X-ray triage
Lung cancer screening
Brain tumor segmentation
Fracture detection in trauma centers

Key Benefits: Faster diagnosis, reduced radiologist fatigue, improved consistency.

The RSNA has curated AI resources to support radiologists exploring deep learning and annotation use cases.

🦠 5.2. Pathology

Digital pathology annotation powers:

Cancer grading systems
Cell segmentation and classification
Mitotic figure detection
Rare disease biomarker analysis

Key Tools: WSI annotation, stain normalization, high-resolution tiling.

👁️ 5.3. Ophthalmology

Image annotation in fundus and OCT imaging is used to:

Detect diabetic retinopathy
Grade glaucoma severity
Monitor macular thickness over time

Real-world Example: Google’s DeepMind algorithm for DR screening in India.

🤍 5.4. Cardiology

Echocardiogram annotations help train models to:

Identify left ventricular function
Detect valvular defects
Measure ejection fraction automatically

Annotation of ultrasound videos is complex and requires temporal consistency.

🧬 5.5. Oncology

Multi-modal annotation supports:

Tumor detection across imaging types
Radiomics analysis for treatment planning
Survival prediction models

Common Annotation Needs: Tumor size, location, stage, and progression.

🏥 5.6. Emergency & Trauma

AI systems are being built to rapidly identify:

Pneumothorax
Internal bleeding
Spinal injuries
Fractures in extremities

Annotations here must be fast, accurate, and auditable.

🧪 5.7. Drug Discovery & Clinical Trials

In early drug development, annotation supports:

Biomarker tracking
Disease progression mapping
AI-powered eligibility screening

Imaging endpoints now often rely on semi-automated labeling reviewed by clinicians.

6. Quality Assurance in Medical Annotation

Why QA Is Non-Negotiable

A small annotation error can result in:

False positives or negatives
Regulatory issues in clinical AI deployment
Decreased trust among physicians

Proven QA Strategies

Double-blind reviews
Inter-annotator agreement (IAA) scoring
Gold-standard datasets for benchmarking
Model-in-the-loop validation

Annotation vendors must implement rigorous multi-layer QA processes to ensure clinical-grade outputs.

7. Challenges in Medical Image Annotation

🧠 Expertise Gap

High-quality annotation often requires specialist medical knowledge, limiting scalability.

🔐 Data Privacy

Sensitive patient data must comply with GDPR, HIPAA, and local regulations.

📊 Class Imbalance

Rare diseases and conditions make it hard to build balanced datasets.

⚙️ Tool Limitations

Many general annotation tools lack support for DICOM, 3D, or WSI formats.

💰 Cost & Time

Expert annotation is expensive and time-consuming—project timelines must reflect this.

8. The Future of Medical Image Annotation

Model-Assisted Annotation (ML-in-the-Loop)

Trained AI models can suggest labels to speed up annotation, which are then verified by humans.

Synthetic Data & Augmentation

To solve data scarcity, synthetic medical images (via GANs or Sim2Real) are increasingly used in training pipelines.

Federated Annotation

Annotation workflows that stay on-premise at hospitals, without moving patient data to the cloud.

Interoperability Standards

New efforts like MONAI, DICOMweb, and FHIR are making annotation pipelines more integratable.

Conclusion: Data Quality is the Foundation of AI in Healthcare

Medical image annotation is more than just labeling pixels—it’s translating human clinical expertise into machine-readable insight. The success of any AI system in healthcare depends on how well its training data captures reality. That means accurate, high-quality, and ethically managed annotations, across every imaging modality and clinical use case.

As AI becomes standard in diagnosis, treatment, and monitoring, annotation will only grow in importance. Whether you're a healthtech innovator, AI researcher, or medical data manager—now is the time to invest in better data.
